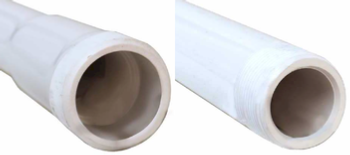

1 1/4″ NPT 8′ Schedule 120 PVC Drop Pipe.
RectorSeal T Plus 2 23631 Pipe Thread Sealant.
Franklin Electric 15FV15S4-2W230 Series V Submersible Pump 15 GPM 1.5 HP 230V 2-Wire.
Clean Both Threads With Soap And Water, Dry, Apply RectorSeal To Male Threads Only, Hand Tighten, Then Tighten 1.5 More Turns With Pipe Wrenches.
Machine both ends of each 7/16" 316 stainless rod with 7/16"-14 UNC external threads, 1.00" thread length. Add a 45° lead chamfer on each end. radius relief.

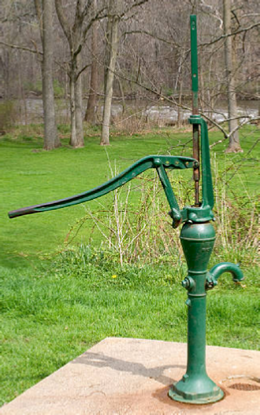

Baker Hand Pump HD11, Up to 200ft deep Water Well, Adjustable Handle Strokes 5", 7" And 10.5"
Baker Hand Pump Sealed Casing Flange 6" Casing. Be Carefull Tighning The Side Bolts To Not Bend The Casing.
4' Long 7/16″ Stainless Steel Round Bar T-316
4' Long 5/8″ Stainless Steel Round Bar T-316
Machine 316 stainless coupler, 5/8" OD × 2" long, drilled and tapped 7/16"-14 UNC through, 45° chamfer inside both ends, 60° chamfer on the outside.
Will Need 25 Pipes, 50 Sucker Rods, And 49 Couplers. For 200ft Deep Water Well.
Permatex 77124 Nickel Anti-Seize Lubricant, 8 oz.
Use Anti Seize On Rods And Couplers Threads.

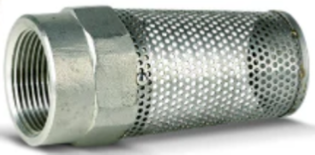

Flomatic 4172SS 333SS 1 1/4" Stainless-Steel Foot Valve.

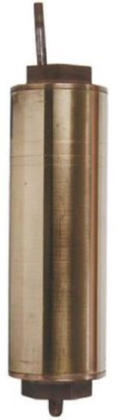

1-1/4" NPT Brass Water Well Cylinder.

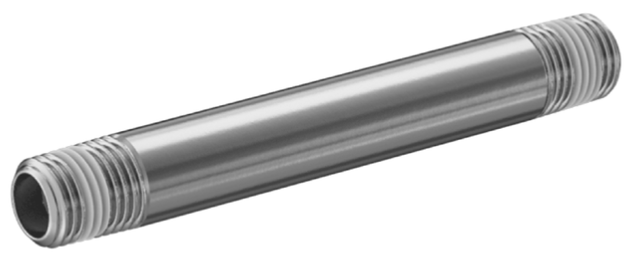

4" 1-1/4" Stainless Steel Threaded Nipple MNPT.
8' 1-1/4" SS 304 Pipe Threaded NPT
A Drainage Weep Hole 1/8" Must Be Drilled In The Upper 8' Pipe Section Below The Frost Line (5' Below Ground) To Drain The Baker Hand Pump Empty During The Winter.

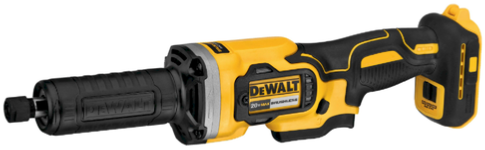

Dewalt DCG426B Die Grinder And 1-1/4" Wire Brush.
1-1/4" NPT Stainless Steel Pitless Adapter, Lead Free. 304 Stainless.
8/2 Heavy Duty Flat W/GRND THW/submersible Pump Cable Copper PVC 600V. Red=Hot Leg L1, Yellow=Hot Leg L2, Blue=Ground.
Gardner Bender HST-WP Well Pipe Splice Kit, 14-8 AWG.
Air Compressor and Water Pump Pressure Switch, 40/60 PSI, DPST
Hydra-Rester Commercial Water Hammer Arrester - 1" MNPT
316 Stainless Steel Reducing Tee Fitting, 1-1/4" x 1-1/4" x 1" NPT.
304 Stainless Steel 1-1/4" NPT check Valve.
WX-302 (150S1), 86 Gal WELL-X-TROL Well Tank (Stand) 1-1/4" Inlet.
J&K Kwik Klamp 1, 3500lbs Pipe Clamp, 1" to 2" Nominal Pipe.
Submersible Well PVC Pipe Elevators (Sold as a Pair of 2), 2,000 lbs.
Harrington 1 Ton 20ft Chain Fall Hoist.
316 Stainless Steel 1" to 1/4" NPT reducer.
316 Stainless 1/4" NPT Pipe Nipple 4" Long.
<<<<<<
1-1/4" Union.
>>>>>>
1-1/4" Tee 316 Stainless Steel.
0 to 60 psi pressure gauge. 1/4" MNPT.
75 psi relief valve 1" FNPT Input And 1-1/4" Output.
