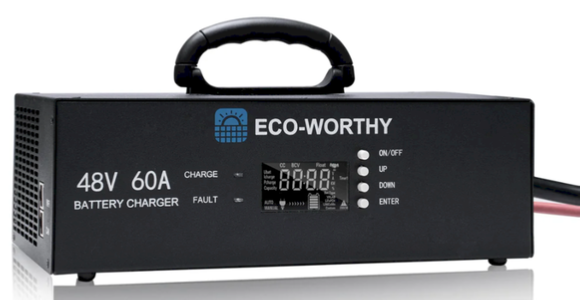

ECO-WORTHY 48V 60A Battery Charger

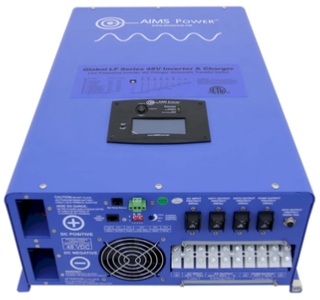

AIMS Power, PICOGLF120W48V240VS, 12000 Watt

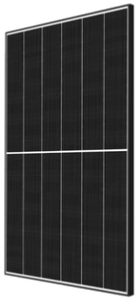

Panasonic EverVolt EVPV400H

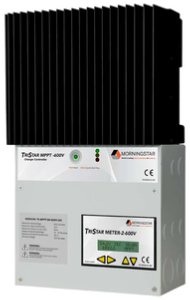

Morningstar, TS-MPPT-60-600V-48
Max Pv Input = 600v
Min Pv Input = 100v
Norminal Max Power = 3200 watts
Battery Output 48V
Pmax = 400 watts
Vmp = 42.1v
Voc = 48.8v
8 x 400 watts = 3200 watts
8 x 48.8v = 390.4v
8 panels in series is a Perfect Match for the Morningstar TS-MPPT-60-600v-48

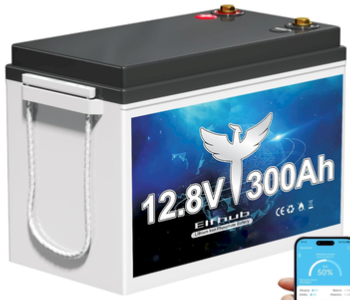

12V 300Ah Lithium LiFePO4 Battery
Elfhub
Dimensions = 13.58" x 7.48" x 9.64"
5 year warranty
3840 Wh output
4 series x 3 parallel = 12 batteries = 36.86 kWh storage.
48Vdc Input
120 / 240 vac 60hz output
12000 watts
36000 watts surge
pure sinewave output
90 to 260v AC input
0 to 60 Amp Output
48v DC Output
3.2 kW charging capacity
12000 watts RV Solar System
Grid to Eco-Worthy Battery Charger with 12 awg wire and a 15 amp breaker.
Use 4 awg copper wire from the battery charger to the battery bank with a 80 amp fuse.
Battery Bank 36 batteries in a (4 Series x 3 Parallel) x 3 connected with 1/0 copper wires.
3 morningstar charge controllers run 4 awg copper wire for the charge controllers to the batterys with a 80 amp fuse each.
24 Solar Panels, 8 Series Connected To Each Morningstar Using 10awg copper wires with a 30 amp fuse.
1 Aims Inverter connected to the batteries using 4/0 copper wire and a 350 amp fuse.
Total Estimated Cost = $32k to $35k
Will Save an estimated $8100 per 5 years On Electricity which figures in battery replacement costs and normal wear on other components. Overall a very good investment and design.
